Digital printers for anodised aluminium
Digital printers for anodised aluminium

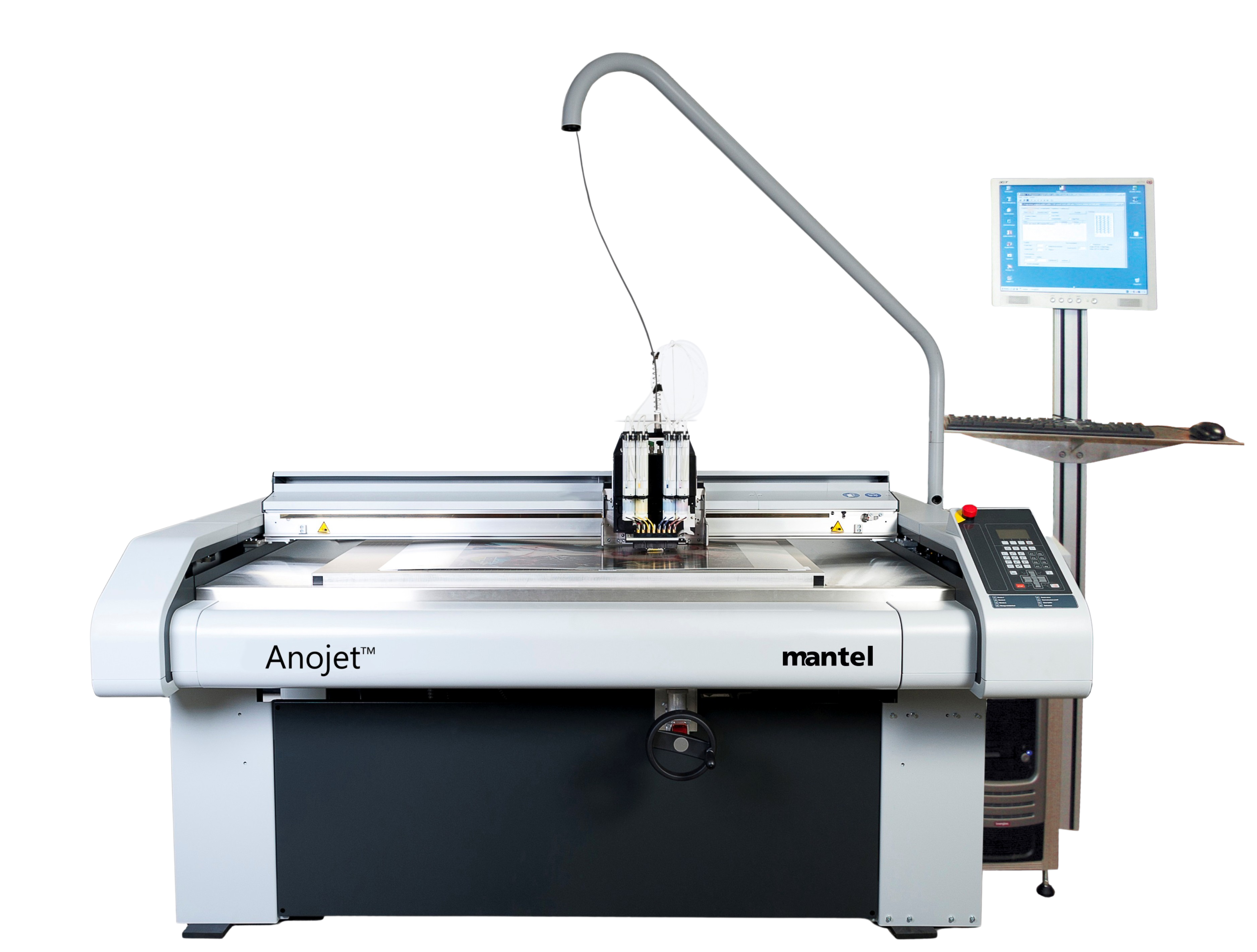

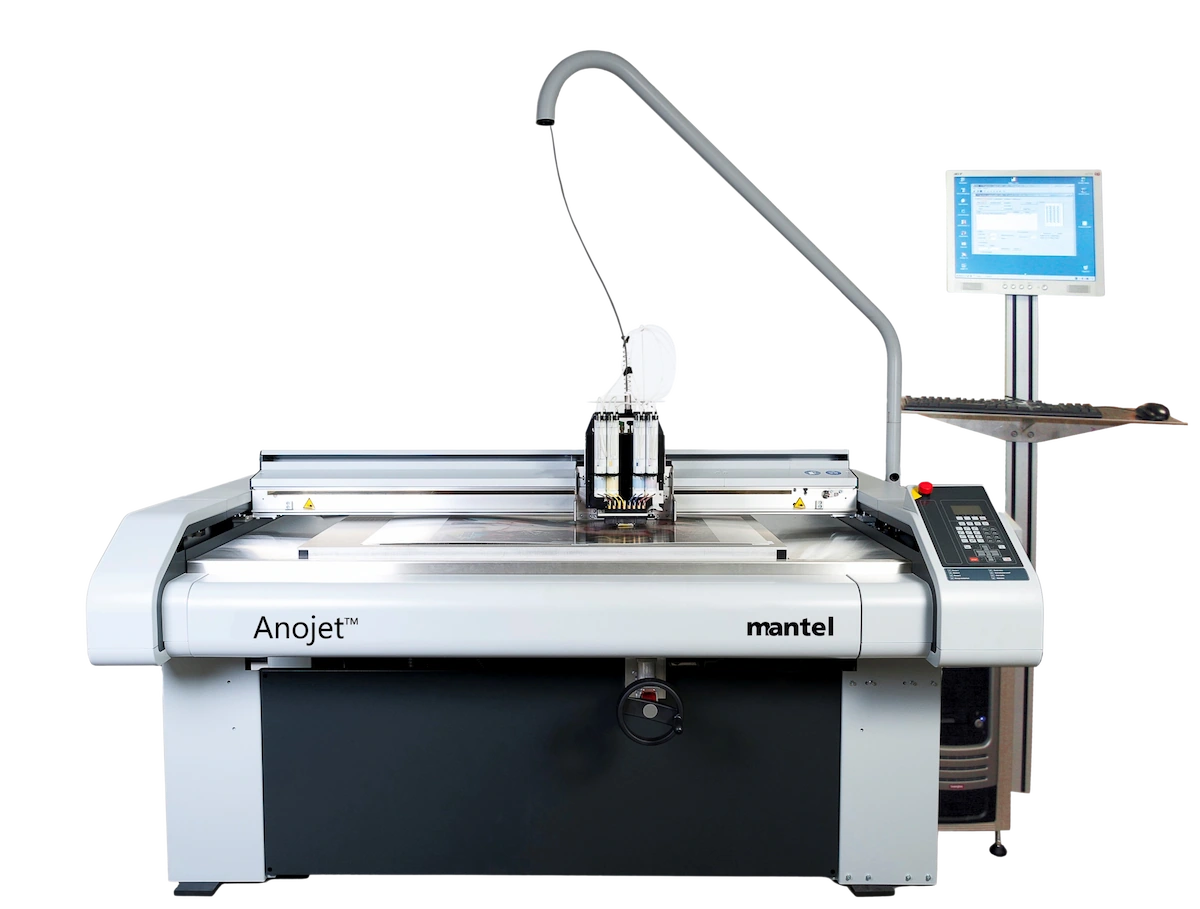

The AnoJet digital printer with Multi-Drops technology is the market leader in aluminium sub-anodising printing. Precise printing in brilliant quality, with up to 32 layers of ink per pore, resistant to fire, chemicals and graffiti.
your benefits with anojet Printers
Quality
- Resistant to fire, chemicals, graffiti and much more
- Protective layer of aluminium oxide, harder than glass
- Print sealed into the aluminium
Precision
- 32-drop Multi-Drops technology
- 500kg Zünd plotter
- Multi-layer printing
Durability
- Spare parts availability for up to 30 years
- Print head updates
- Worldwide service
Maximum resistance through embedded printing
The AnoJet Multi-Drops technology prints up to 32 layers into the same pore.
Conventional sub-anodising printers deposit ink into the pore only once or twice. With AnoJet, we achieve up to 32 layers, resulting in complete saturation of the pore depth. This gives rise to the properties that define our printed image:
Chemical Resistance
industrial cleaning agents and acids leave no trace
Abrasion Proof
industrial cleaning agents and acids leave no trace
Anti-Graffiti
solvents and cleaning agents leave the printed image untouched
High UV Resistance
no yellowing outdoors
Fire Resistance
no flammable carrier layers
Scratch Resistance
industrial cleaning agents and acids leave no trace
use cases for anodised aluminium printing
Our proprietary Eloxal technology combines precision and durability, setting new standards in anodized aluminum printing.
Nameplates
Customized, durable name plates for industrial and corporate environments.
Signs in public spaces
Interior design
Art + Design
Kitchen and Bathroom
Industrial labels
Our printers for digital printing on aluminium
Discover our industrial inkjet printers with Multi-Drops technology for digital sub-anodising printing. Available in various sizes for industrial and commercial requirements.
| M-800 | M-1200 | L-1200 | XL-1200 | |
|---|---|---|---|---|
| Max. print area | 1110×750 | 1110×1020 | 1605×1020 | 2020×1190 |
| Max. material thickness | 0.2 mm to 40 mm (expandable up to 80 mm) | |||
| Print heads | Epson Piezo Drop-on-Demand | |||
| Colours | CMYK | |||
| Resolution (dpi) | Up to 2880 x 2880 dpi / renders text as small as 4pt | |||
| Max. print speed | 1-2 m² per hour | |||
| Material fixation | Vacuum table | |||
| Print bed | Unheated (no material warping) | |||
| Dimensions LxWxH (mm) | 1630x1540x1200 | 2630x1940x1200 | 3070x1940x1200 | 3570x1940x1200 |
| Weight (kg) | 500 | 650 | 750 | 880 |
| User interface | LCD display, multilingual | |||
| Safety | Light barriers in the working area | |||
| Operating ambient temperature (with ink) | 20°C to 25°C | |||
| Storage temperature (without ink) | 0°C to 28°C (no sudden temperature fluctuations) | |||
| Operating ambient Humidity (%) | 45% to 65% | |||
A machine built for the next 20 years
Zünd Plotter
Zünd plotter with a steel frame starting at 500 kg. Zünd is the world’s leading manufacturer of industrial cutting plotters, and we’ve built on this platform for over 25 years. Spare parts availability of 20 to 30 years.
Epson printheads
Epson Piezo Drop-on-Demand, sourced directly from Epson. The partnership secures 10 years of spare parts availability per printhead generation and early access to new generations.
Upgrade Kits
When a new printhead generation is released, we upgrade existing machines — with software, installation, and new printhead. The mechanics stay, the print technology gets updated.
Worldwide service
Over 300 service technicians worldwide through the Zünd service network. On-site maintenance and repair, not phone support.
Frequently asked questions
Who are Aluminium printers suitable for?
- Print service providers wanting to offer anodised printing with greater durability and better resolution than UV-LED or screen printing.
- Engraving businesses and aluminium processors looking to extend their offering with digital direct printing on anodised aluminium.
- Signage and sign manufacturers looking for a printing process that withstands the demands of outdoor, industrial and public spaces
Does Mantel Eloxal also offer a repair service?
Yes. Through our partnership with Zünd, we offer worldwide spare parts supply, technical support and on-site repair service. Over 300 service technicians are on hand worldwide to repair machines quickly.
Can I have my orders printed at Mantel Eloxal?
No. Mantel Eloxal manufactures and distributes digital printing machines for sub-anodising printing. We do not produce printed goods ourselves.
What is digital aluminium sub-anodising printing?
Sub-anodising printing on aluminium involves printing directly into the pores of anodised aluminium, which is then sealed with hot water. This creates a protective layer over the printed image, which is why the printed products are resistant to fire, chemicals, UV, graffiti and scratches.
